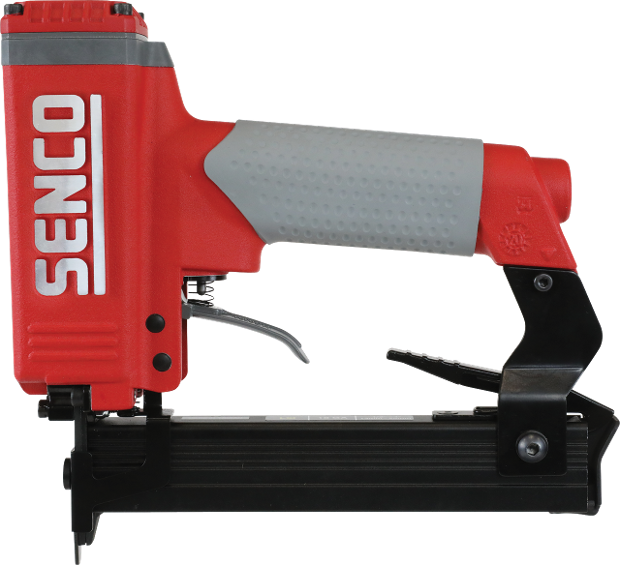

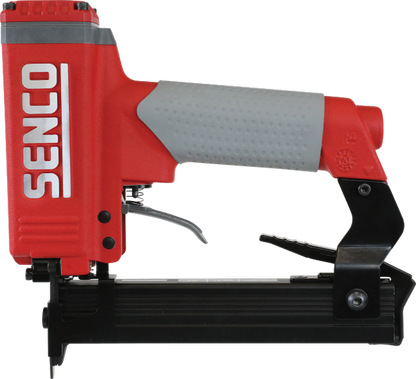

Senco 18 gauge headless Brad Nailer LS1XP-AZ

The LS1XP Brad Nailer is designed for precision fastening, driving headless 18-gauge AZ brads up to 25mm in length. Featuring a tapered nose, it allows for accurate placement even in hard-to-reach areas, making it ideal for fine woodworking and trim applications.

Features & Benefits:

• Lightweight design—weighs just 1.3kg for easy handling.
• Bottom-loading magazine enables quick reloads for uninterrupted workflow.
• Comfort-grip handle minimizes fatigue during extended use.
• Oil-free operation—prevents lubrication stains on fine woods.
• Rugged magazine construction withstands on-the-job stress.
• Built-in muffler ensures quieter operation for user comfort.

Applications:

• Furniture & Cabinetry: Cabinets, drawers, decorative trim, rattan furniture.
• Finish & Trim Work: Window beading, moulding, picture frames, upholstery trim panels.
• Specialty Fastening: Nailable plastic parts, finishing mirrors and picture frames.

Technical Specifications:

• Dimensions: 229mm (L) × 51mm (W) × 210mm (H)
• Firing Mode: Trigger fire
• Air Inlet: 1/4" female (NPT, ANPT standard)
• Air Consumption: 23.1 l/min (at 60 shots per minute)
• Sound Pressure Level (Lpa): 83 dB
• Sound Power Level (Lwa): 90 dB
• Gauge: 18 ga.
• Magazine Capacity: 100 brads
• Shots per Second: 5
• Collation Type: Glue collated
• Fastener Head Type: Headless
• Collation Angle: 0º
• Fastener Type: Brads
• Oil-Free: Yes
• Operating Pressure: 4.8-8.3 bar
• Operating Temperature Range: -18 to 49 °C
• Fastener Length: 13-25 mm
• Fastener Diameter: 1.18-1.2 mm

Non-Technical Specifications:

• GTIN: 0741474138072
• Warranty: 5 years
• Net Weight: 1.3 kg
• Includes Case: No
